Electric Tilting Trike OEM: Leaning Three-Wheelers That Ride Like a Motorcycle

The tilting electric trike is the category buyers ask for when they want motorcycle handling without the motorcycle risk profile. Instead of a rigid frame that leans nothing and corners like a delivery cart, a tilting trike lets the whole chassis lean into a turn — two front wheels, one rear wheel, all three planted on the road — and it locks upright when the rider stops. For OEM buyers, the tilting platform is a separate product line from the rigid cargo trike, with its own mechanism, its own testing requirements, and its own certification path. This guide covers what a tilting trike actually is, how the mechanism works, how the category compares with rigid trikes and motorcycles, the drivetrain and battery specs, and the OEM checklist that separates a factory that can build a leaning chassis from one that is just rebadging a rigid frame.

What Is a Tilting Electric Trike?

A tilting (or leaning) three-wheeler keeps three wheels on the ground but allows the body to lean into corners, usually by 20–30 degrees, through a pivoting front or rear axle. Two layouts dominate:

• Delta layout (two front wheels, one rear) — the front axle carries a parallelogram linkage that lets both front wheels lean together while staying in contact. This is the most common tilting platform because the front end does all the steering and leaning work.
• Tadpole layout (one front, two rear) — the rear axle leans instead. Less common for electric utility trikes, but used where cargo space behind the rider matters more.

The defining feature is not the wheel count — it is the leaning mechanism. A rigid trike has three fixed wheels; a tilting trike has three wheels plus a hinged chassis. That difference is why the two categories feel completely different to ride, and why the comparison with conventional e-bikes and motorcycles matters when you spec a fleet. The general stability and ride-position questions buyers raise first are covered in our tricycle vs e-bike guide.

Why the Tilting Trike Category Is Growing

Search interest in tilting electric trikes from Chinese factories has been climbing through 2026, and the demand pattern is easy to read:

• Riders want motorcycle feel without motorcycle risk — a leaning chassis corners like a bike, which matters on long delivery shifts where a rigid trike feels like driving a box.
• No-license classes — in most US states a 750W, 20 mph tilting trike with pedals qualifies as a Class 2 e-bike, and in the EU a 250W version rides the EPAC line. The same regulatory map that governs rigid trikes applies here, tracked in our US and EU regulation guide.
• Fleets that mix speed and stability — last-mile couriers, campus security, and rental operators want a vehicle riders enjoy, because rider retention and throughput both improve. The fleet economics of small electric platforms are quantified in our cargo delivery fleet guide.

The cultural driver behind the broader three-wheeler wave — cheap, practical, fun vehicles replacing trucks and cars — is documented in our why Americans love the e-tricycle analysis, and the tilting trike is the segment of that wave aimed at riders, not just load haulers.

How the Tilting Mechanism Works

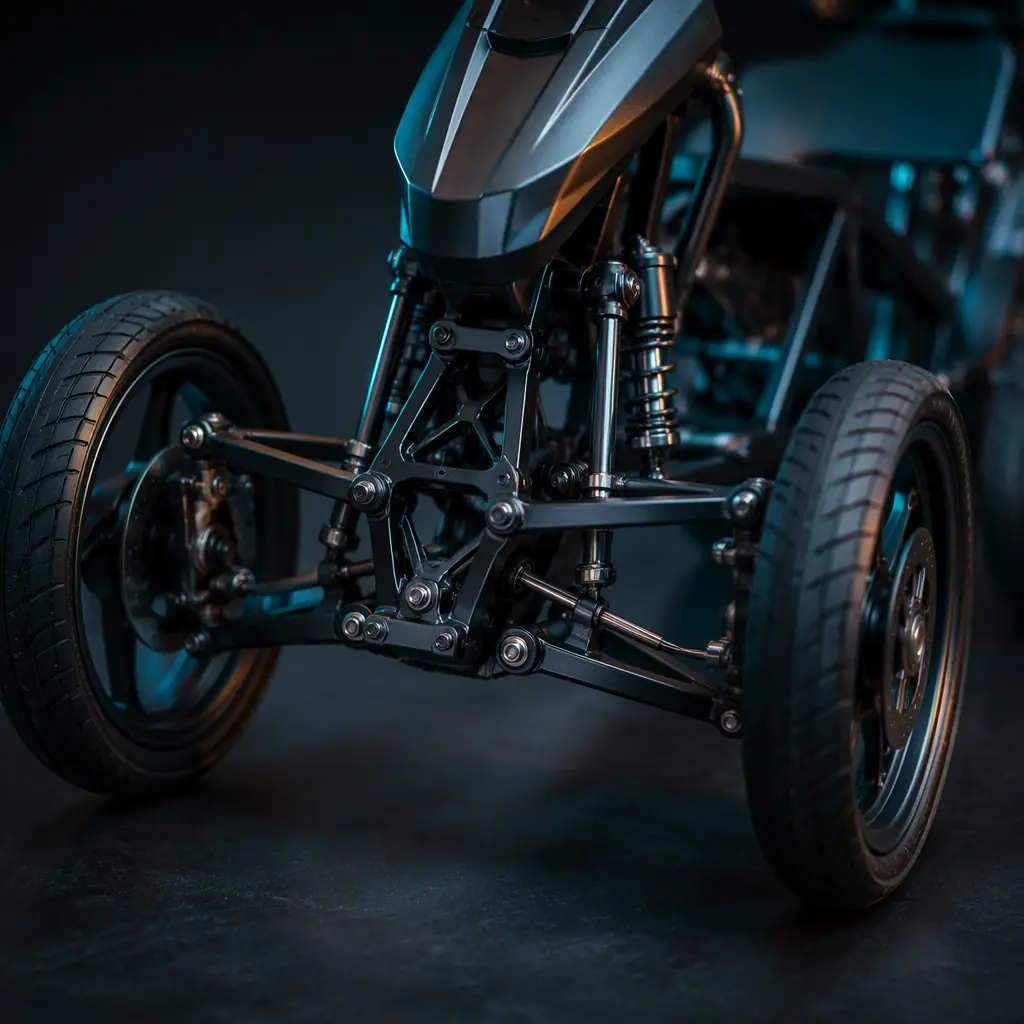

At the heart of a tilting trike is the front-axle linkage, and the quality of that linkage is the quality of the whole vehicle:

• Parallelogram linkage — two arms connect the front wheels to the chassis so they lean in parallel. The linkage transfers lean angle into the turn while keeping both tires loaded, which is what lets the trike corner at speeds a rigid frame cannot safely hold.
• Dampers — hydraulic or elastomer dampers control the lean rate so the chassis does not flop from side to side. Damper tuning decides whether the trike feels planted or wallowy, and it is the hardest part to get right in production.
• Standstill lock — the most important safety feature: most designs lock the lean mechanism below roughly 5 km/h, so the rider never has to put a foot down at a stoplight. The lock must fail safe (locked), which is a specific QC checkpoint we cover in the OEM checklist below.

Because the mechanism carries real loads through hundreds of thousands of lean cycles, the ride-quality and durability considerations overlap heavily with suspension design — the same trade-offs covered in our cargo trike suspension guide, applied here to the leaning front end.

Tilting Trike vs Rigid Trike vs Motorcycle

The honest comparison for a buyer deciding between platforms:

The rule of thumb: rigid trikes win on static payload and simplicity, motorcycles win on speed and range, and tilting trikes win on the middle ground — rider comfort, cornering confidence, and urban throughput. For last-mile and rental duty that middle ground is exactly where the volume is moving.

Drivetrain and Battery Specs for Tilting Trikes

Tilting platforms are typically spec'd one tier lighter than rigid cargo trikes because they favor rider experience over gross payload:

• Motor: 500–1000W — mid-drive motors are common on tilting builds because the motor sits low and keeps the lean axis clean, but hub motors are fine for delta layouts at lower speeds. The torque and efficiency trade-off between the two is explained in our hub vs mid-drive guide, and the power-to-payload math in our motor power guide.
• Voltage: 48V or 60V — 60V 32Ah NMC (1.92 kWh) is the workhorse config for Class 2 tilting trikes; the same pack logic applies as on rigid trikes, compared in our 60V vs 72V guide.
• Range and speed — 50–80 km per charge at 25–35 km/h top speed, which is why tilting trikes fit 30–60 km daily routes without a second pack.
• Differential — delta-layout tilting trikes need a differential or torque-split between the two front wheels so both tires drive cleanly through a lean; without it the inside wheel scrubs and range drops.

Brakes follow the same rule as every other platform: hydraulic disc up front (the leaning wheel carries the load in corners) with drum or disc at the rear — the sizing logic is in our brake systems guide, and tire choice for the loaded dual front wheels in our tires guide.

OEM Checklist When Commissioning a Tilting Trike

Buying tilting trikes in volume requires verification that a rigid-frame order never exposes:

• Lean-cycle testing data — ask how many lean cycles the linkage and dampers are rated for (a working figure is 100,000+ cycles) and request the test report. The factory that cannot produce one has not tested it.
• Standstill lock fail-safe — confirm the lock defaults to locked on power loss. This is a safety-critical item, not a convenience feature.
• Frame and weld QC — the leaning chassis sees higher cyclic loads than a rigid frame; the same weld inspection and e-coat process that protects rigid trikes applies, as documented in our manufacturing process guide.
• Certification — UL 2849 for the US Class 2 path, EN 15194 for the EU EPAC path, and eMark where L-category rules apply; the full matrix is in our EU vs US certification guide.
• Spares and service — dampers, linkage bushings, and lock actuators are consumables; confirm the spares pipeline before committing, using the checklist in our after-sales and spare parts guide.

The broader OEM process — tooling, samples, third-party inspection, deposit structure — is the same one documented in our cargo trike OEM guide, applied to the tilting platform.

Who Is Buying Tilting Trikes

The buying segments map cleanly onto the category's strengths:

• Last-mile couriers — riders cover 40–60 km/day and want cornering confidence at 25–35 km/h; the throughput case is in our courier and parcel guide.
• Rental and tourism fleets — resort and beach-town operators report tilting trikes rent faster because they are fun; the fleet model is in our tourism rental guide.
• Commuters and mobility riders — riders who want the stability of three wheels without the boxy feel; the rider-facing considerations are in our safety features guide.

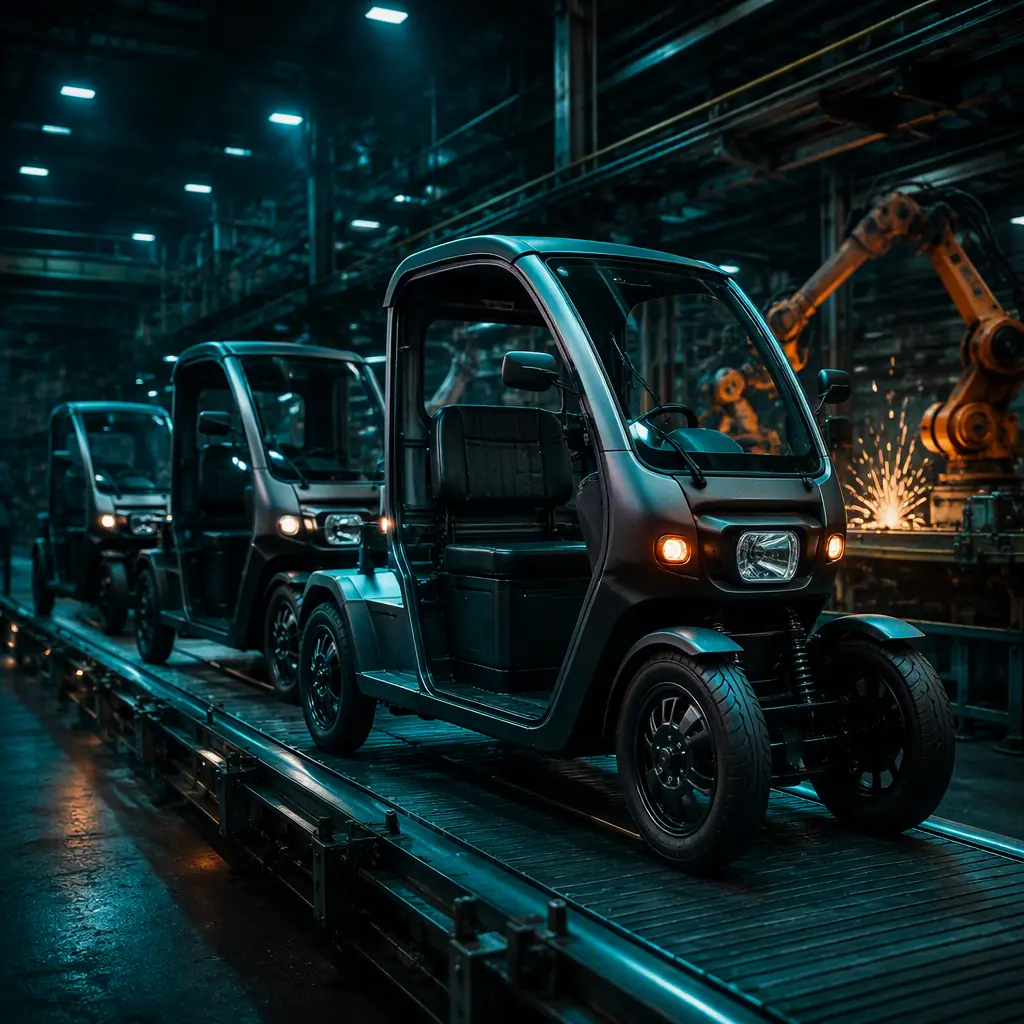

Production capability is the gate on all of these segments: a factory that welds rigid frames but has never built a leaning chassis will struggle with the linkage tolerances. The assembly and QC stages that separate a serious platform from a rebadge are walked through in our manufacturing process guide, and they are the same stages an OEM buyer should audit before tooling.

Spec Your Tilting Trike Program

A working starting spec for a US Class 2 tilting trike: 750W mid-drive, 60V 32Ah NMC pack, delta layout with parallelogram linkage, hydraulic dampers, fail-safe standstill lock, hydraulic disc front brake, and a 100,000-cycle linkage rating — certified to UL 2849 with UN 38.3 batteries. That build competes directly with motorcycle-style commuters at roughly a third of the price, which is the same value story that made the rigid trike category explode.

Tell us your target market, speed class, and volume plan. We will spec the tilting platform, drivetrain, lock mechanism, and certification package for your program.
