Cargo Tricycle Brake Systems: Hydraulic Disc vs Drum for 500 kg Loads

A cargo tricycle at full payload is a 700 kg vehicle that stops on one front contact patch and two rear ones — and the front tire alone is expected to shed most of the kinetic energy. This is why brake architecture, not motor power, is the first spec a fleet buyer should interrogate on a cargo trike. A 1200W motor can get a loaded trike to 35 km/h easily; it is the brake system that decides whether the same trike returns from a downhill delivery route in one piece. This guide covers the standard three-brake architecture on heavy cargo trikes — hydraulic disc front, dual drum rear, plus parking brake — what each brake actually contributes at 300 kg and 500 kg payload, the stopping-distance numbers worth testing, and the OEM spec checklist that separates a fleet-grade brake system from a parts-bin one.

Why Brake Specs Matter More on a Trike Than a Bike

Two-wheelers carry their mass in a narrow line, and the rider shifts weight to help braking. A cargo trike cannot do either. The math on a 500 kg-class trike: curb weight around 180-220 kg, payload 500 kg, gross weight roughly 700 kg spread across three contact patches, with the rear pair carrying about 60% of that mass. At 30 km/h, that gross weight holds roughly 60 kJ of kinetic energy that the brakes must convert to heat — repeatedly, on urban routes with a stop every 300-500 m.

The consequence is that brake fade, not motor torque, is the most common cause of loaded-trike incidents. A brake system sized for an empty trike overheats within minutes on a real delivery route. That is why the OEM brake spec must be derived from gross weight, route profile, and stop frequency — never from the unloaded test ride. Our cargo trike motor power guide covers the drivetrain side of the same duty-cycle math.

The Standard Architecture: Hydraulic Disc Front, Dual Drum Rear

Almost every heavy cargo trike from Chinese factories uses the same layout, and the reasons are physical:

• Hydraulic disc front — the front wheel carries the largest share of braking force under deceleration (weight transfer pushes load forward). A hydraulic disc with a 180-220 mm rotor gives the modulation and heat capacity the front position demands.
• Dual drum rear — drums are sealed against dust, mud, and water, which matters on farm and construction routes where discs would grind through pads. Two drums also give independent braking on each rear wheel, which improves stability under heavy load.
• Parking brake — a mechanical lock on the rear axle or lever-mounted lock that holds a loaded trike on a slope. On a 500 kg trike, a missing parking brake means chocking wheels on every stop.

The same layout is why the maintenance discipline described in our electric tricycle maintenance guide (pad replacement at 3,000-5,000 km, annual hydraulic bleed, drum shoe adjustment) exists: each brake type fails in a predictable way, and the architecture is chosen so no single failure mode takes out all braking at once.

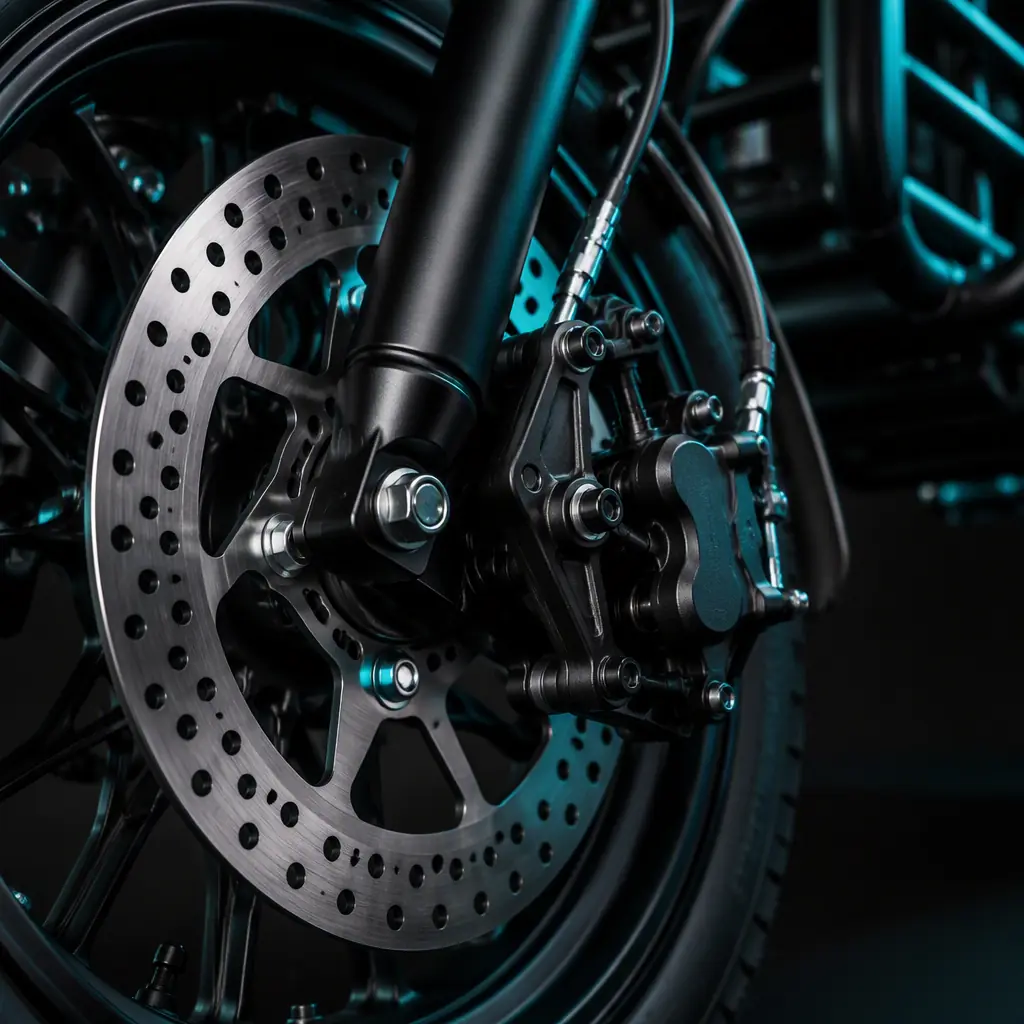

Hydraulic Disc Brakes: Where They Earn Their Cost

A hydraulic disc brake converts lever force through fluid pressure, which means more braking force at the caliper for the same hand effort, and self-adjusting pad clearance as pads wear. On a cargo trike the disc earns its cost in three specific places:

• Heat capacity — a 203 mm rotor with a two-piston caliper sheds heat far better than any rim or cable disc at the same weight. On long descents with a 500 kg load, this is the difference between consistent braking and fade at the bottom of the hill.
• Modulation — hydraulic feel lets an operator feather the brake when positioning a trike in a tight loading dock or on a ramp. Fleet operators consistently rank controllability at low speed above raw stopping power.

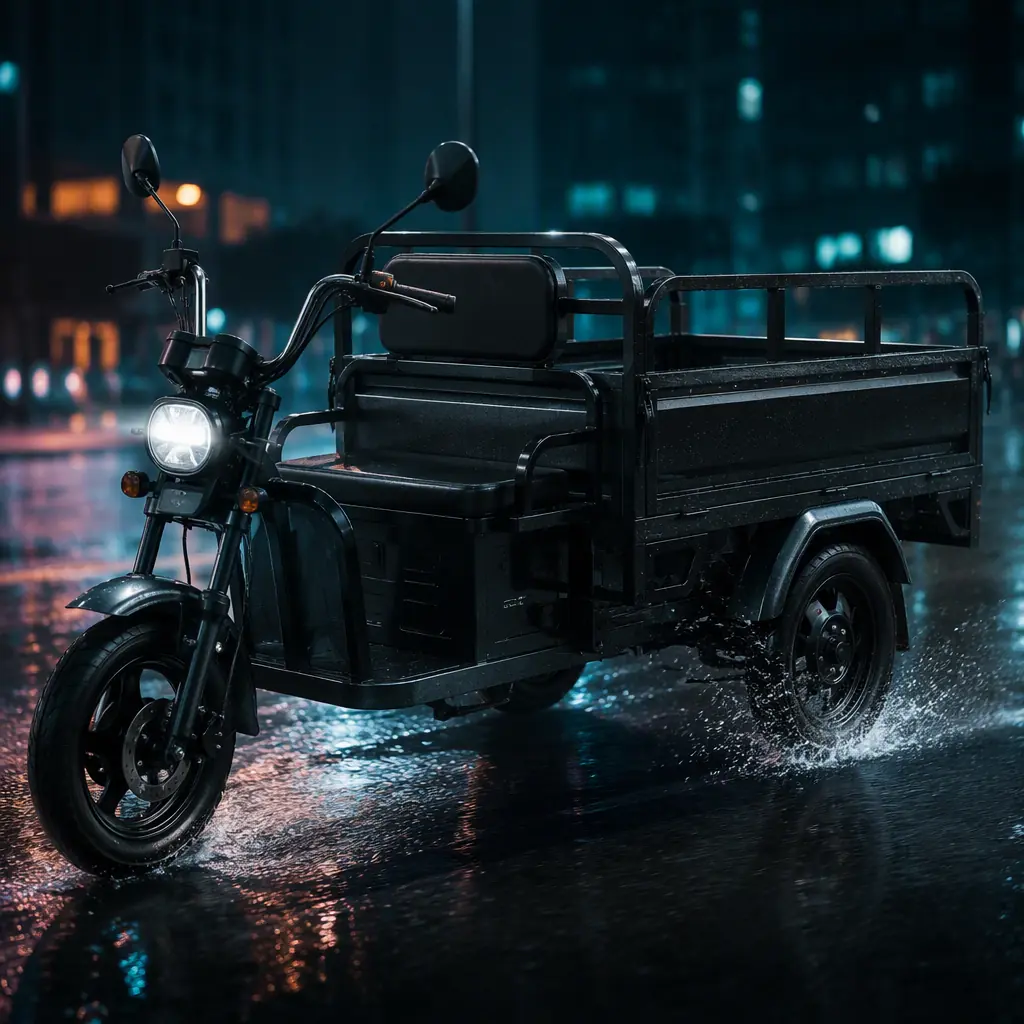

• Wet performance — sealed hydraulics and a large rotor shed water quickly. A cargo trike working in rain retains a much higher fraction of its dry stopping performance with hydraulics than with cable-actuated brakes.

The cost trade-off is real: hydraulic calipers, hoses, and master cylinders add roughly $30-60 to the factory BOM per trike versus cable discs, and hydraulic systems need a bleed kit and trained technicians in the service network. For 300 kg EU-class trikes on flat urban routes, cable discs are defensible; for 500 kg class trikes with any hill content, hydraulics are the correct spec. Our 60V vs 72V battery guide shows the same logic applied to the battery: match the component to the duty cycle, not to the price list.

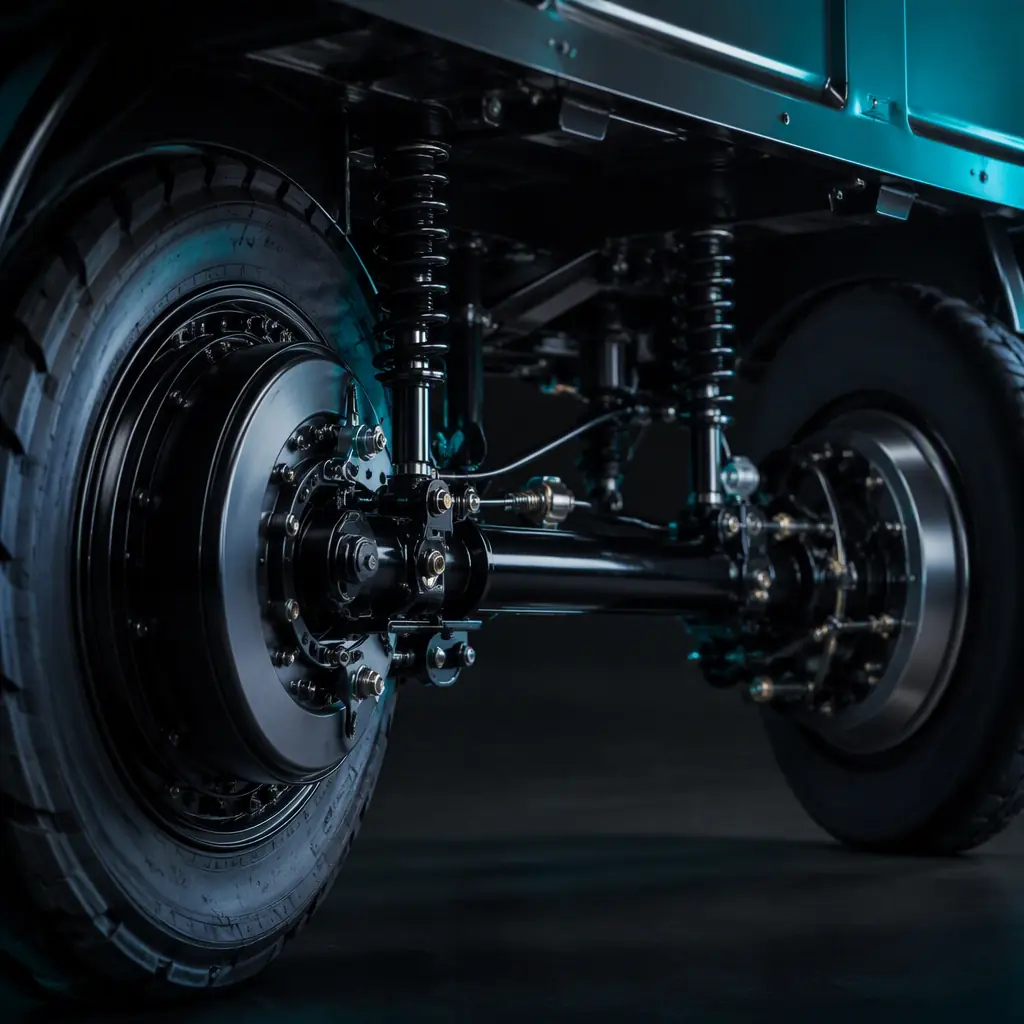

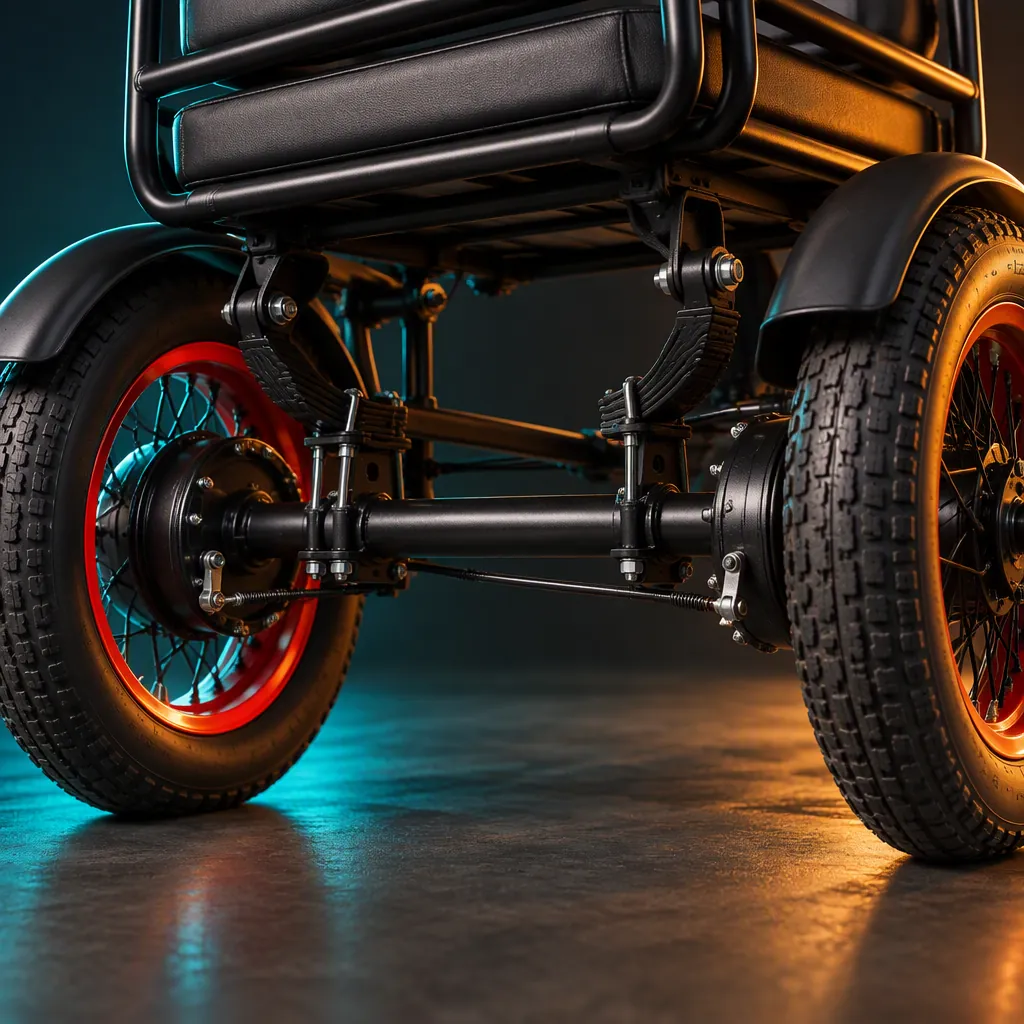

Drum Brakes: The Workhorse Under Payload

The rear drums on a cargo trike do unglamorous, essential work. Because the rear axle carries 60% of gross weight, the rear brakes are the primary steady-state brakes on flat ground; the front disc is the emergency and descending brake. Drum characteristics that matter at this duty:

• Sealed design — shoes and drum are enclosed, so farm dust, mud, and winter salt do not attack the friction surface the way they do exposed disc pads. This is why farm and ranch operators prefer drums; the environment in our farm and ranch guide is exactly the drum's home turf.
• Self-energizing action — a leading-shoe drum amplifies braking force from the rotation of the wheel itself, which means more braking torque per unit of cable or rod force at the lever. On a trike whose rear brakes are often actuated by a single lever, this amplification matters.
• Predictable wear — drum shoes on a 500 kg trike typically last 8,000-12,000 km, roughly double disc pad life in the same duty. The service interval, not the initial bite, is what fleet accountants see.

The trade-off is heat: drums dissipate heat worse than discs, so repeated hard stops from 30 km/h will fade a drum faster than a disc. The standard mitigation on cargo trikes is exactly the split layout described here — drums handle steady-state and moderate braking, the front disc handles the hard stops.

Stopping Distance: What to Test at Full Payload

Every brake claim on a cargo trike should be verified with one number: stopping distance at 25 km/h at the spec'd gross weight. A realistic envelope for a properly specced heavy trike:

Ask the factory for the test protocol: surface type, tire pressure, and payload configuration must be stated, or the number is marketing. The same verification discipline applies to tires, which is why our cargo trike tire guide insists on documented load ratings rather than visual tire size.

The Parking Brake: A Spec, Not an Afterthought

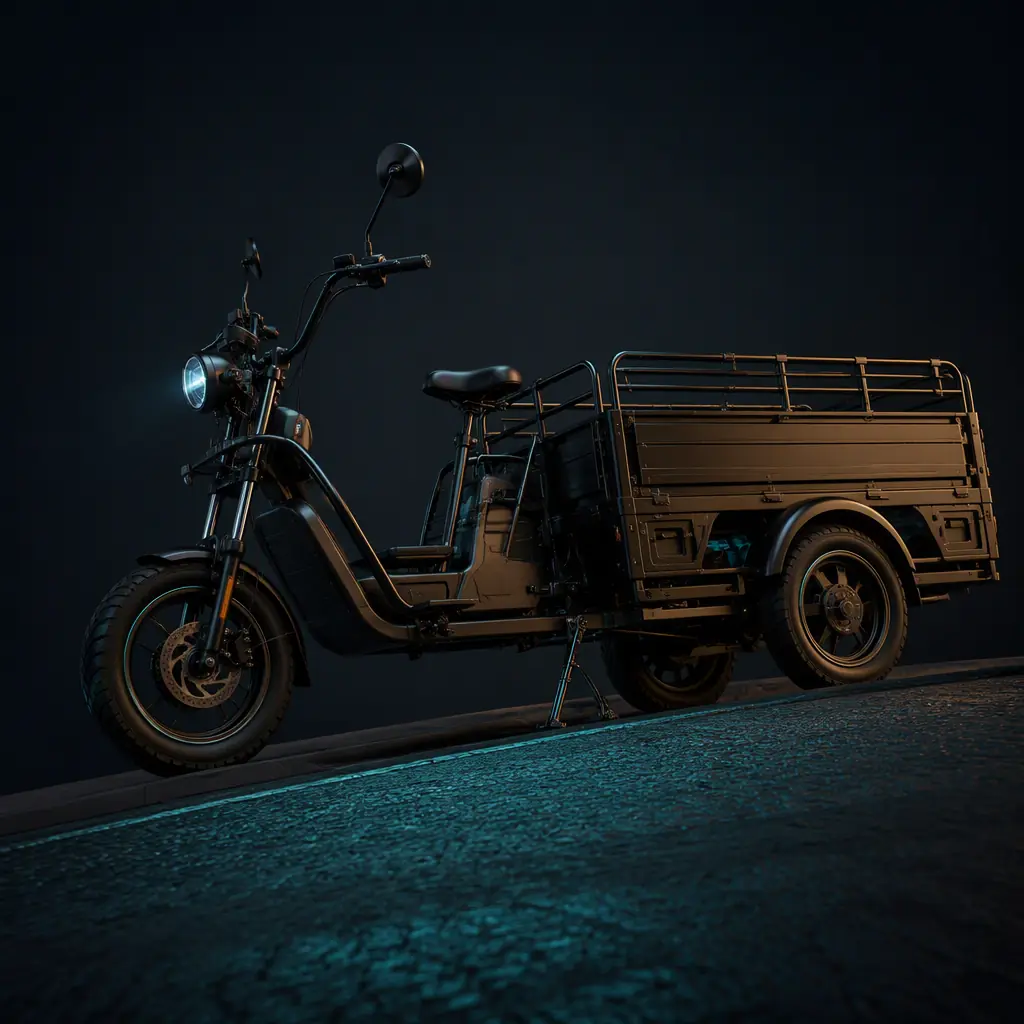

On a 500 kg trike, a parking brake is a safety device, not a convenience. Delivery drivers park on slopes, farmers stop on ramps, and a loaded trike rolls with terrifying force. Three configurations to consider:

• Rear-axle mechanical lock — the most robust; locks the driveline at the axle, independent of pad and shoe wear.
• Lever-locked rear drum — a cable that holds the rear drums engaged; adequate for slopes under 8% with regular cable adjustment.
• Electronic park brake — increasingly common on higher-end trikes; convenient for fleets but adds a failure mode and a diagnostic requirement that smaller service networks cannot always handle.

Whichever configuration you choose, verify the parking brake holds the trike at full payload on a 10% grade for a documented test duration. For winter operation, parking brakes that freeze engaged are a known failure mode — our winter operation guide covers the cold-weather brake and cable care that keeps a fleet mobile in January.

OEM Brake Spec Checklist for Buyers

When you evaluate a factory for a cargo trike program, put these five items on the sample test sheet:

1. Rotor size and caliper type — written into the spec: e.g., 203 mm rotor, two-piston hydraulic caliper front; 160-180 mm drums rear. Vague "disc brakes" on a datasheet is a red flag.
2. Stopping distance at gross weight — documented per the protocol above, wet and dry.
3. Brake fade test — ten consecutive stops from 30 km/h at full payload; the tenth stop must stay within 30% of the first.
4. Parking brake hold test — full payload on a 10% grade, hold duration documented.
5. Spare parts commitment — pads, shoes, rotors, and hoses in the factory's standard spare parts list with stated lead times. The after-sales structure around wear items is covered in our after-sales and spare parts guide.

Brake components are also where certification risk hides: the brake system is part of the EN 15194 and UL 2849 scope, and the eMark type-approval process for higher-speed trikes includes specific brake tests. Our EU vs US certification guide maps which brake documentation you need for each market.
