Funeral & Cemetery Grounds Tricycle
Specifying a Quiet-Site Fleet

Every fleet conversation in this industry starts with the same mistake: treating a funeral home or cemetery grounds operation as a light delivery route. It is not. A memorial site has no customers waiting at a curb, no throughput target, and no tolerance for a vehicle that rattles or tracks ruts into a lawn. What it has instead is a small number of high-consequence moves across a very specific surface, executed under time pressure and in front of a family.

This is why the procurement questions that decide a cemetery tricycle programme are almost never about motor wattage. They are about section-line geometry, ground pressure, load shape, and acoustic discipline. The platform below is the same 800W–1200W cargo chassis used across our other work-trike programmes, but the way it has to be specified here is genuinely different — and getting the specification wrong is not a rework ticket, it is a disruption to a service.

What follows is the specification logic, in the order that matters: geometry first, then load, then power and speed, then charging, then the order itself.

Why a Memorial Grounds Operation Is Not a Delivery Route

Before choosing a platform, it is worth being explicit about the five duty characteristics that separate a cemetery or funeral-home circuit from a standard cargo route. Every specification decision later in this article traces back to one of them.

The surface row is the one that most often sinks a fleet pilot. A cemetery lane is typically compacted aggregate, not asphalt, and the working areas off that lane are turf over undisturbed subsoil. A trike that carries its load on three relatively narrow contact patches concentrates ground pressure in a way a light truck does not, so tire section and pressure schedule become a specification item, not a consumable. The standard platform runs 3.00-12 front and 3.75-12 dual rear, load-rated — the dual rear pair is what spreads the working load and keeps rutting off soft ground — see the cargo tricycle tire and pressure guide for how to set the schedule.

The Section-Line Geometry That Eliminates Most Platforms

In a modern cemetery, the governing dimension is not the road width. It is the gap between interred rows — the section lines — because that is where a grounds crew actually works when setting a marker, levelling a grave, or laying out a small service under a tent. Measure these four things before you look at any vehicle, because each one eliminates platforms outright.

• Section-line spacing. If the working gap between interred rows is under roughly 1.6 m, a ride-on platform is the wrong answer — a hand cart or a wheeled barrow is faster and does less damage. A trike earns its place where the rows give it a usable lane of about 1.6–1.9 m.
• Gate and archway openings. Measure clear width and clear height, not nominal size. Heritage entrances and columbarium archways are the two places where a tall canopy or an enclosed cab turns around at the gate.
• Grade on the service lane. Cemetery topography is rarely flat. Where a loaded climb exceeds roughly 8%, step up the motor rating or drop a payload class — adding battery capacity does not fix a grade problem, it only extends how long the vehicle struggles.
• Turf bearing over the working area. This is a ground-pressure question, not a total-weight question. What matters is load per wheel contact patch. A loaded trike concentrates its mass on three patches, so the rear pair has to carry the box over a wide footprint rather than a single narrow wheel.

There is also a fifth constraint that is not geometric but behaves like one: where the vehicle can be seen and heard. A maintenance vehicle crossing a section during an interment is a visible intrusion. Routes therefore tend to be planned as perimeter loops with a limited number of entry points into the working sections — the same circuit discipline that governs municipal public works fleets, which in turn means the vehicle spends more of its day on the lane and less time threading between rows than a delivery trike would.

What a Grounds Circuit Actually Carries

The load profile is where a memorial-grounds trike differs most from a cargo delivery trike, and where the payload rating gets misread. The figures below are the working envelope for this platform: 300 kg under EU-spec rating and 500 kg for non-EU builds, with a box volume of 150–500L depending on configuration.

Two conclusions follow. First, most of the year this vehicle runs volume-limited, not weight-limited — which means a small box chosen to save cost on the invoice is the single most common specification error. Second, the payload rating is set by the least frequent load, not the most frequent one (the arithmetic is worked through in our cargo tricycle payload capacity guide). A crew that moves soil or top-dressing even occasionally needs the rating to cover it, because the alternative is overloading the platform on exactly the day it matters.

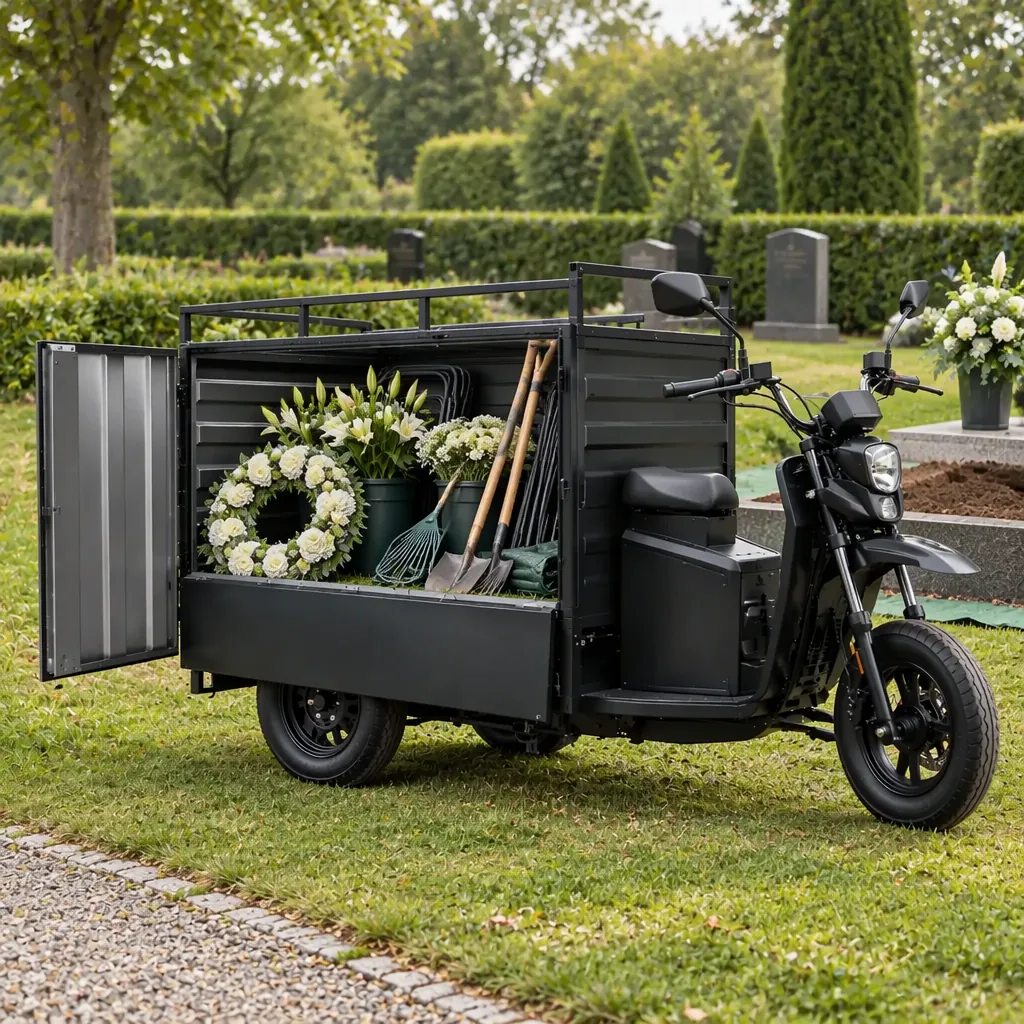

The drop-side box is the configuration that matches this profile. It lets a crew load oversized or awkward items from the side without lifting over a fixed wall, and it can be left open on the lane while the crew works nearby. The same box logic drives florist and perishable delivery builds, where volume rather than mass sets the envelope. For sites with significant soil movement or long tent frames, a box in the 300–500L range is the practical recommendation, and where items genuinely exceed the box, a small trailer is the better answer than overloading the platform.

Power, Speed and the Acoustic Discipline Question

The platform runs an 800W, 1000W or 1200W brushless hub motor with differential, on a 60V or 72V pack. The differential is not a nicety here. On turf and loose aggregate, a non-differential twin-rear platform drags its inner wheel through every tight turn, and in a cemetery the turns are constant and the surface is the one you least want scored. Differential drive is the specification that protects the ground — we cover the mechanism in detail in the tricycle differential guide.

On speed, the answer for this site type is unambiguous: govern it down, not up. The platform's governor is settable, and for memorial grounds the working value should sit at the low end of the available range rather than the 25–35 km/h general-purpose band. There are three reasons.

• Audibility. Hub motor noise scales with speed. A governed-down trike moving at walking pace across a section is materially quieter than the same vehicle at full road speed, and on a site where a service may be in progress 40 m away, that difference is the whole argument.
• Surface protection. Low-speed travel over turf and loose aggregate reduces both rutting and the spray of surface material. It also lowers the energy going into the tire contact patch on soft ground.
• Crew safety on shared surfaces. Grounds vehicles, walking visitors and processions share the same lanes, which is the shared-surface case in our safety features guide. A governed speed cap is the cheapest single risk control available, and it is usually the item a cemetery board asks about first.

Two other platform features carry more weight than usual on this site. The reverse gear (the platform offers a forward/neutral/reverse selector) is used far more than a delivery rider would use it, because the vehicle repeatedly has to back out of narrow section entries rather than turn around. And the full LED lighting package matters for the early-morning start, when grounds crews are typically working before the first visitors arrive. A beacon is available and is worth having on sites where the vehicle crosses a public-access lane.

One boundary worth stating plainly: this is a non-road-registered utility platform. It is not a substitute for a licensed road vehicle, and where a grounds operation needs to travel on public roads between two sites, that movement needs to be handled separately.

Charging a Grounds Fleet Without Building Infrastructure

This is where most small cemetery and funeral-home fleets get the arithmetic wrong, because the constraint is not range. Range is ample: the platform delivers 50–80 km on a 200 kg load over flat terrain, and a grounds circuit is measured in single-digit kilometres per day. The constraint is charge time.

A full recharge on the supplied 5A charger takes 6–10 hours. That is a perfect fit for a single-shift operation that returns the vehicle in the afternoon and plugs it in overnight — which describes the majority of cemetery grounds operations. It is not a fit for any operation running two shifts or a split early/late pattern, because there is no window long enough to refill the pack between them.

So the charging decision reduces to a single question (the wider version of this arithmetic is in our fleet charging guide): does this site run more than one working burst per day? If the answer is no, plug into an existing 230 V supply and nothing else is needed — no depot, no capital project, no electrical upgrade. If the answer is yes, there are exactly three options, and they should be chosen at the specification stage rather than discovered later:

1. A second vehicle. The cleanest answer. Two trikes alternate, each charging fully overnight and topping up between bursts. It also removes the single-point-of-failure risk that matters when a vehicle failure on a service day is unacceptable.
2. Higher-current charging. Faster refill on the same pack, but it demands a supply circuit that can take it and it is harder on pack life if used as the routine rather than the exception.
3. Swappable packs. Where the site is willing to hold a second pack, a swap returns the vehicle to service in minutes. This changes the specification, so it has to be raised before the order, not after.

Note that none of these is a battery-capacity decision. Enlarging the pack extends how far the vehicle goes, not how fast it refills, and a bigger pack takes longer on the same 5A charger. Fleet planners who try to solve a two-burst day with a larger battery usually end up with a heavier vehicle and the same problem.

Specifying the Vehicle: A Working Checklist

Pulling the sections together, this is the specification sequence for a funeral home or cemetery grounds platform. Work down the list; each line is a decision, not a preference.

Two of these deserve a note because they are frequently under-specified. The parking brake is not a convenience on this site — a crew stopping repeatedly on a sloped lane while carrying soil or seating needs the vehicle to stay put without a wheel chock. And the chassis finish matters more than it does on a delivery fleet, because these vehicles are commonly stored outdoors rather than in a garage. The platform's standard e-coat plus powder coat is the relevant specification; where a site is coastal, that conversation should extend to the fastener and box material package described in the liveaboard and waterfront supply guide.

Order Terms and the Pilot Question

OEM orders on this platform start at 50 units per model, with a standard lead time of 15–30 days and 30–45 days for a first custom-branded run. Pre-production samples ship before mass production, which is the mechanism that matters most for this site type, because a cemetery ground test is the only way to validate the geometry and surface assumptions above.

The pilot recommendation is therefore straightforward, and it is the same one that applies across our work-trike programmes: run one or two units for a full season before committing the balance. A season is the correct test window here, because the load profile is strongly seasonal — event and venue catering runs into the same peak-driven planning problem — the working envelope in a busy period is nothing like an average week. Instrument the pilot with four measurements and the fleet decision makes itself:

• Ground pressure evidence: any visible rutting or turf damage on the working sections, and whether the dual rear spread it adequately.
• Section access: how often the vehicle made it into a working section versus parking on the perimeter lane and carrying from there.
• Charge windows: whether the 6–10 hour refill fitted the site's actual daily pattern, or whether a second unit is genuinely required.
• Acoustic acceptability: whether the governed speed kept the vehicle acceptable near services in the judgement of the people running them.

Those four answers, collected over a real season rather than a demonstration week, define the order — and they are far more reliable than any specification sheet, including this one. Beyond the platform itself, the terms worth fixing up front are the spare parts package (tires, brake components and the consumables that a grounds crew will genuinely go through), the service schedule, and the documentation set your procurement process needs.

Frequently Asked Questions

Can one trike replace a pickup truck on a cemetery grounds crew?

Partially. It replaces the light, frequent moves — flowers, wreaths, seating, tools, small equipment, top-dressing — and does so at a fraction of the running cost while doing far less damage to turf and aggregate lanes. It does not replace a truck for bulk soil delivery, heavy machinery, or any movement on public roads. Most operations that adopt one keep a truck for the residual work rather than replacing it outright.

Is the 300 kg EU rating or the 500 kg non-EU rating the right one to specify?

They describe the same chassis under two compliance regimes, so the answer is fixed by where the vehicle will be used and registered, not by preference. For specification purposes, both figures are the platform's working envelope rather than a target to fill; the practical question is which of your real loads sits closest to the rating, and that is almost always soil or top-dressing.

How quiet is the vehicle at governed speed?

A hub motor at walking pace is dominated by tire noise on gravel rather than motor whine, which is the reason the governor recommendation in this article matters more than any acoustic specification. We do not publish a sound pressure figure, because it varies with surface and load; the variable a fleet can actually control is speed, and governing it down is where the acoustic improvement comes from.

What happens to the load rating in winter or wet conditions?

Treat the published figures as dry, flat-terrain references and derate for loose, saturated ground, which is where the tire pressure schedule and the dual rear footprint do the most work. The platform's LFP option is worth considering for sites that see high summer ambient temperatures, and the battery and controller specs should be confirmed against your specific climate at the quotation stage.

Build the Specification Around the Site, Not the Catalogue

Every specification decision above traces back to one of four site realities: the section-line geometry, the soft-surface load path, the volume-limited load profile, and the low tolerance for noise in front of a family. None of those four appear on a general cargo tricycle datasheet, which is exactly why a memorial-grounds fleet specified from a catalogue page tends to disappoint in its first season.

If you are scoping a funeral home or cemetery grounds platform, send us the section-line spacing, the gate and archway clearances, the steepest loaded grade on the service lane, and both your typical and your heaviest load. We will come back with the motor and differential configuration, the box volume, the tire and pressure schedule, and a charging plan that fits your actual daily pattern — plus the sample-phase arrangement that lets you validate all of it on your own ground before you commit to the fleet.
