Fat Tire E-Bike
500W–750W motor · 48V 15–20Ah · 4.0" fat tires · 60–80 km range
All-Terrain Performance, Factory Direct

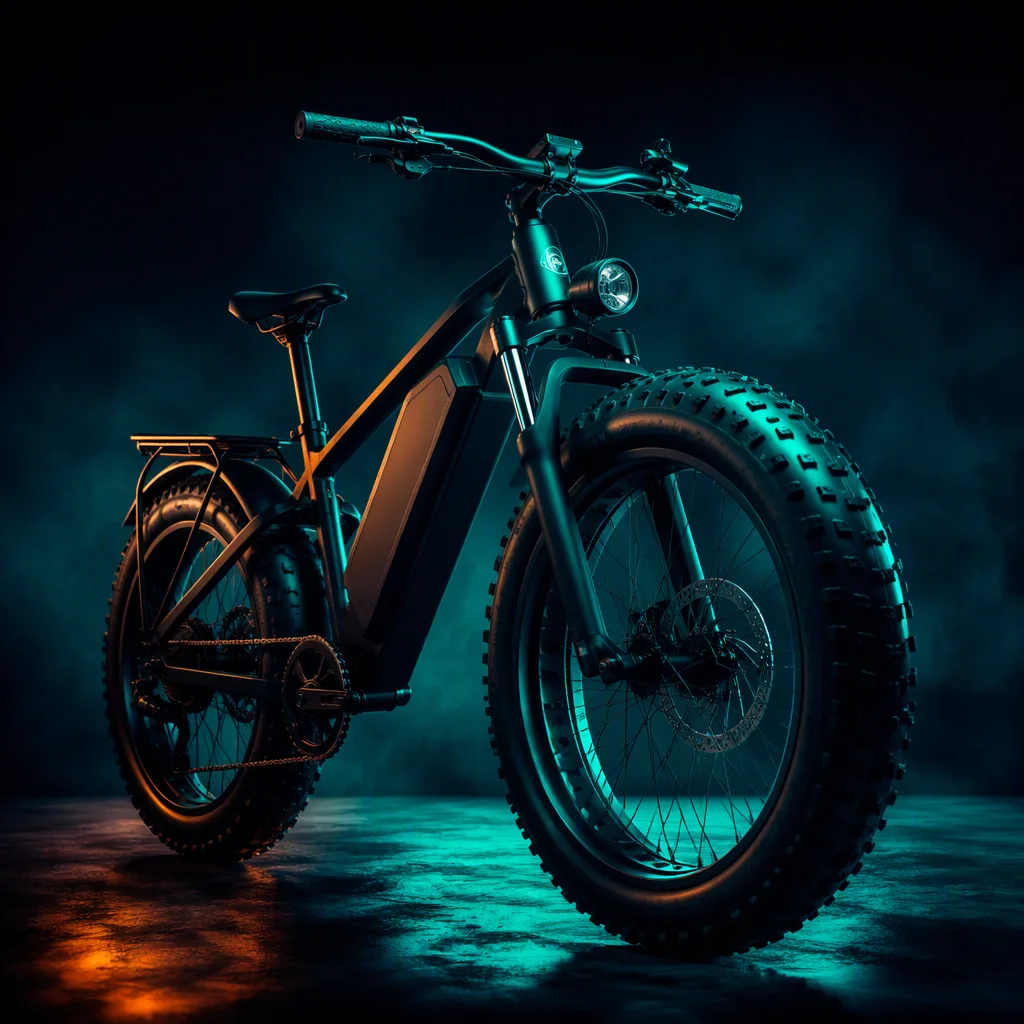

The fat tire platform is built for surfaces that stop conventional e-bikes — sand, snow, mud, gravel, and loose forest trails. With 4.0-inch-wide tires at low pressure (8–15 PSI) and a high-torque hub motor, this platform delivers traction and stability across conditions that define the adventure and utility segments. Shipped to North American, Middle Eastern, and Australian distributors.
Fat Tire Spec Sheet
The 60-second read for buyers: this Fat Tire E-Bike platform is engineered around 500W / 750W brushless hub motor, 48V high-torque winding, with a 48V 15Ah / 48V 20Ah lithium, integrated frame pack pack, delivering 60–80 km (throttle + pedal assist), and 150 kg total (rider + rear rack). OEM orders start at 50 units per model with a 15–30 day standard lead time (30–45 days for the first custom-branded run), and pre-production samples ship before mass production. The compliance package covers EN 15194, UL 2849, UN 38.3, and each order carries cell, BMS and test-report documents in the export file. Spec and duty-cycle questions are settled with an export engineer on one call — no obligation.
| Motor | 500W / 750W brushless hub motor, 48V high-torque winding |
|---|---|
| Battery | 48V 15Ah / 48V 20Ah lithium, integrated frame pack |
| Range | 60–80 km (throttle + pedal assist) |
| Top Speed | 32 km/h (Class 2), 45 km/h off-road mode |
| Charging Time | 5–7 hours (2A), 3.5–4 hours with 4A fast charger |
| Brakes | Zoom hydraulic disc, 180 mm rotors front & rear |
| Weight | 28–33 kg (with battery) |
| Load Capacity | 150 kg total (rider + rear rack) |
| Tires | CST/Chaoyang 26×4.0" fat tires, all-terrain tread |
| Frame | 6061 aluminum alloy, reinforced dropouts |
| Suspension | RST / Zoom front suspension fork, 80–100 mm travel |
| Display | Bafang C965 color LCD, USB charging port, 5 assist levels |
| Transmission | Shimano 7-speed derailleur, 14-28T freewheel |
Configure Your Fat Tire Platform
The fat tire segment rewards differentiation — color, component spec and accessory packages define brand positioning at retail. Our engineering team adapts every subsystem to your market requirements.

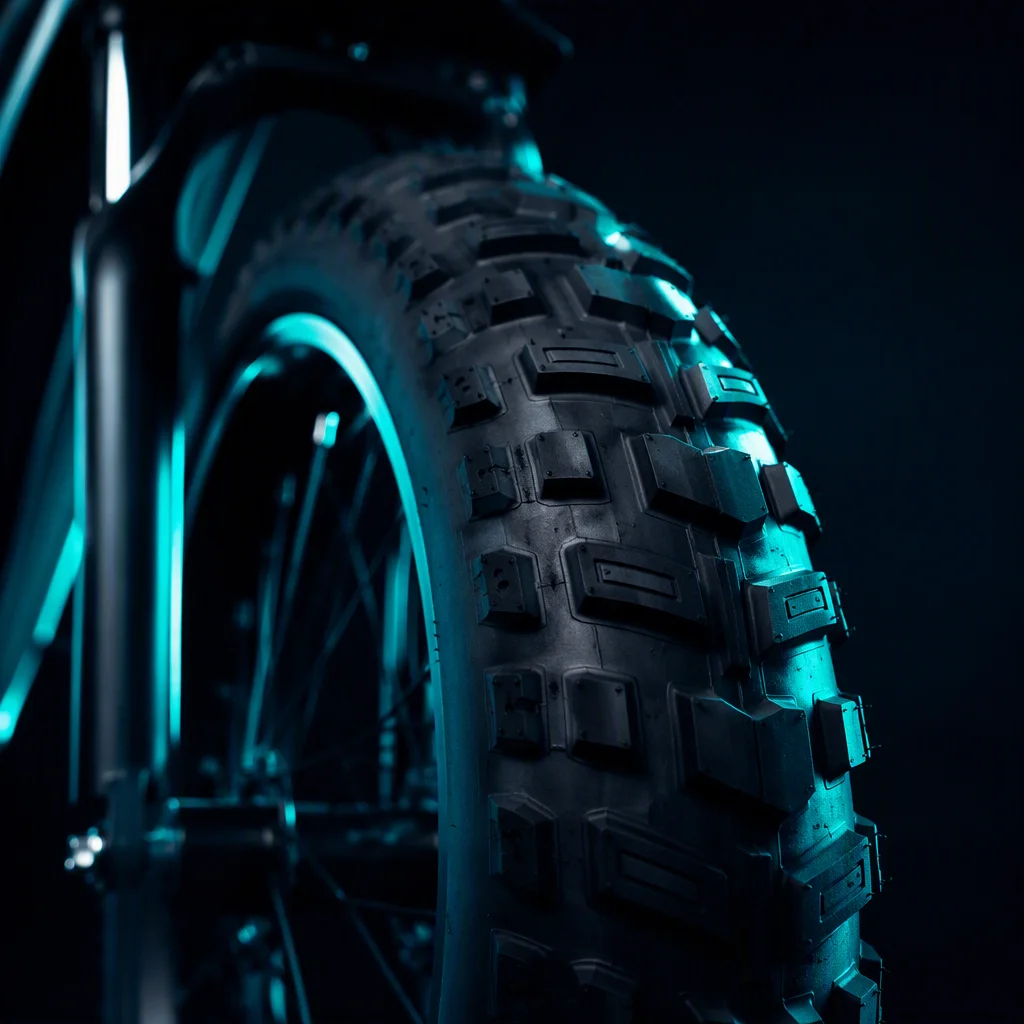

- Tire brand tread pattern — CST, Chaoyang, or Kenda with street, trail, or sand-specific tread
- Motor winding — high-torque for steep terrain or high-speed for flatland cruising
- Battery configuration — 15Ah, 17.5Ah, or 20Ah with Samsung, LG, or grade-A domestic cells
- Suspension fork brand — RST, Zoom, or SR Suntour with lockout and preload adjustment
- Color palette — matte black, sand beige, forest camo, or full custom Pantone finish
- Integrated rear rack with passenger kit — reinforced subframe with foot pegs and grab handle
- Throttle type — thumb lever or half-twist grip, left or right side mount
- Lighting package — integrated 2000-lumen headlight with brake-actuated tail lamp
Planned for North America and EU
The fat tire platform is planned to UL 2849 for the US and Canadian markets alongside EN 15194 for Europe. Battery packs are designed to UN 38.3 transport safety requirements as standard.
Where Fat Tire E-Bikes Excel
From recreational rental fleets to rugged last-mile delivery, the fat tire platform opens markets that standard e-bikes cannot reach.
Recreation & Off-Road

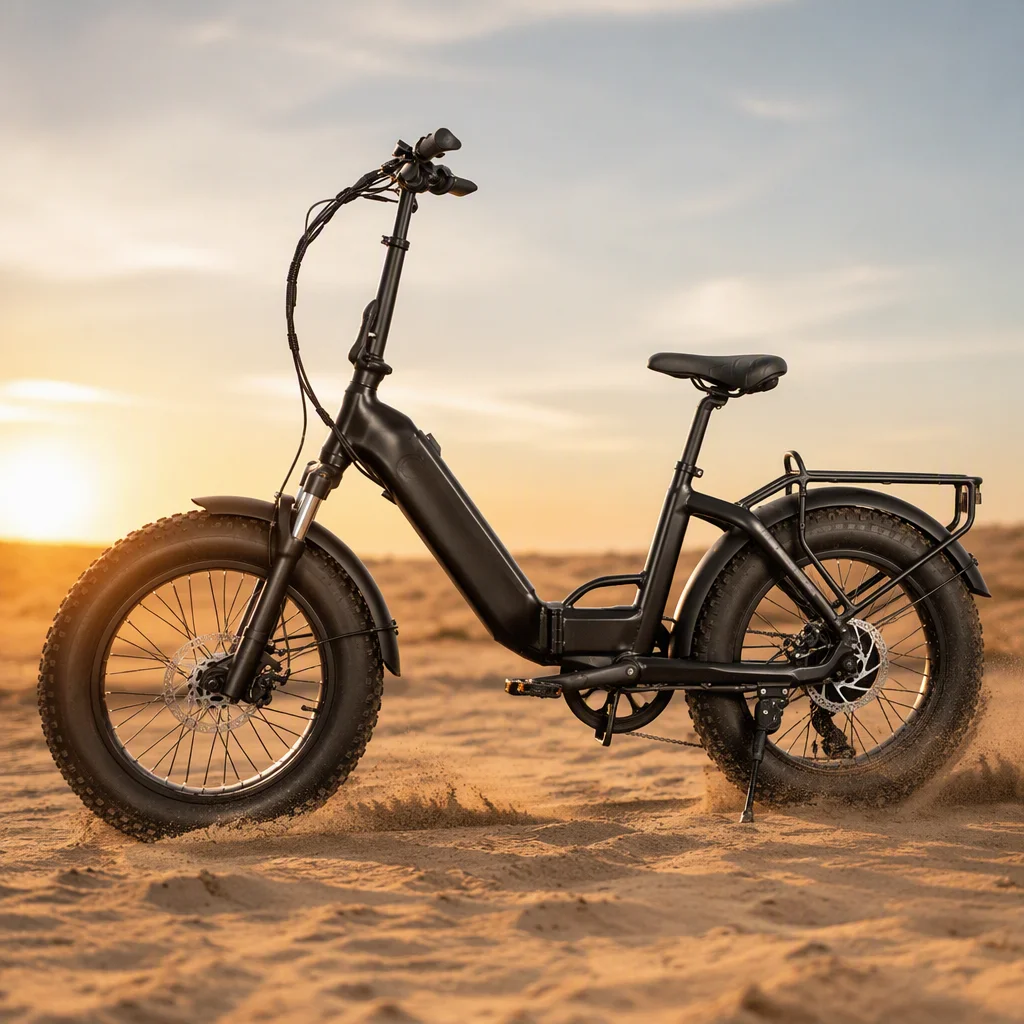

Beach cruiser, trail explorer, and hunting/fishing utility variants. Wide tires handle soft surfaces and rocky trails that defeat narrower treads — a proven retail segment with strong repeat customer demand.
View All IndustriesCargo & Logistics
Heavy-duty rear rack with 60 kg payload, extended-range battery, and all-weather traction make this platform a reliable workhorse for rural and suburban delivery routes year-round.
Explore Cargo & LogisticsTourism & Rental
Resort beach cruisers and national park rental fleets. Low tire pressure absorbs trail chatter, making the ride accessible to casual riders. Branded livery with integrated lock-and-track hardware.
View All IndustriesDelivery & Last-Mile
Snow-belt and rural delivery routes where standard tires cannot maintain traction. High-visibility color options, dual-battery-ready frame, and cargo-specific rear rack geometry.
Explore Delivery & Last-MileModel Highlights
Frequently Asked Questions
What is the MOQ and lead time for fat tire e-bike orders?
The standard MOQ is 50 units per model variant. Lead time is 15–30 working days for standard configurations. Custom color and branding for first-time OEM orders may extend the timeline to 30–40 days. Mixed-container orders combining fat tire models with other e-bike types are supported, and we offer a 5% consolidation surcharge for sub-MOQ orders.
Is the fat tire e-bike UL 2849 ready for the US market?
Yes. Our fat tire platform is planned to full UL 2849 certification covering the complete electrical system — motor, battery, controller, and charger. The battery packs are additionally designed to UN 38.3 for transport safety and run leading cell brands. UL documentation accompanies every shipment. For markets requiring both UL 2849 and EN 15194, both certification scopes are planned against a single production run.
Can I customize the tire brand, tread pattern, and suspension for my market?
Yes. You can specify tire brand (CST, Chaoyang, or Kenda) and tread pattern — street, trail, sand, or snow-specific — at the same base price. Suspension fork upgrades from the standard Zoom fork to RST or SR Suntour with lockout and preload adjustment add $25–50 per unit depending on the tier. Full custom Pantone color matching, logo decals, and branded display splash screens are included with orders of 50 units or more.
Compare Models in This Line
| Specification | Standard 500W | Plus 750W | Pro 1000W |
|---|---|---|---|
| Motor | 500W hub, 48V | 750W hub, 48V | 1000W hub, 48V |
| Battery | 48V 15Ah | 48V 17.5Ah | 48V 20Ah |
| Range | 60–70 km | 65–75 km | 70–80 km |
| Top Speed | 32 km/h | 32 / 45 km/h | 45 km/h |
| Charging Time | 5–7 hours | 5–7 hours | 3.5–4 hours (fast) |
| Weight | 28 kg | 30 kg | 33 kg |
| Suspension Travel | 80 mm | 100 mm | 100 mm + lockout |
| Price Range (FOB) | $550–650 | $680–800 | $850–980 |
| MOQ | 50 units | 50 units | 50 units |
Ordering This Model
- Packaging & Container Load — Each fat tire e-bike is packed in a heavy-duty 7-layer export carton (158 x 30 x 82 cm) with 40 mm high-density foam padding and reinforced corner protectors. Due to the wider tire profile, a 20GP container accommodates approximately 62 assembled units or 84 SKD units. A 40HQ fits up to 148 assembled or 200 SKD units.
- Payment Terms — Standard terms are T/T 30% deposit with order confirmation, 70% against scanned B/L copy before shipment. For orders above $60,000, we accept irrevocable L/C at sight. Sample orders and first-time trial orders under 10 units are payable 100% via T/T or Alibaba Trade Assurance.
- Sample Policy — A single sample unit is available at 1.2x the FOB unit price plus air freight (approximately $220–350 to North America or Europe via DHL/FedEx, 6–8 business days due to larger package dimensions). The sample cost is fully credited against the first bulk order of 50 units or more. Custom-branded samples require a $300 artwork and decal setup fee.
- Warranty & After-Sales — The standard warranty covers 18 months on the frame, 12 months on the motor and controller, and 12 months or 800 charge cycles on the battery. Hydraulic brake components are covered for 12 months. Warranty claims are resolved within 5 business days. Every container shipment includes spare parts valued at 1% of the order total — typically brake pads, inner tubes, and a charger — at no additional cost.
Ready to Source Fat Tire E-Bikes?
Tell us your target terrain, preferred motor and battery spec, and monthly volume. Our export engineers return a detailed quotation with unit pricing, compliance documentation, and shipping timeline within 24 hours.
