Motors & Controllers
Hub & mid-drive · 250W–3000W · sine wave FOC controllers · IP54–IP65
Motor & Controller Parameters

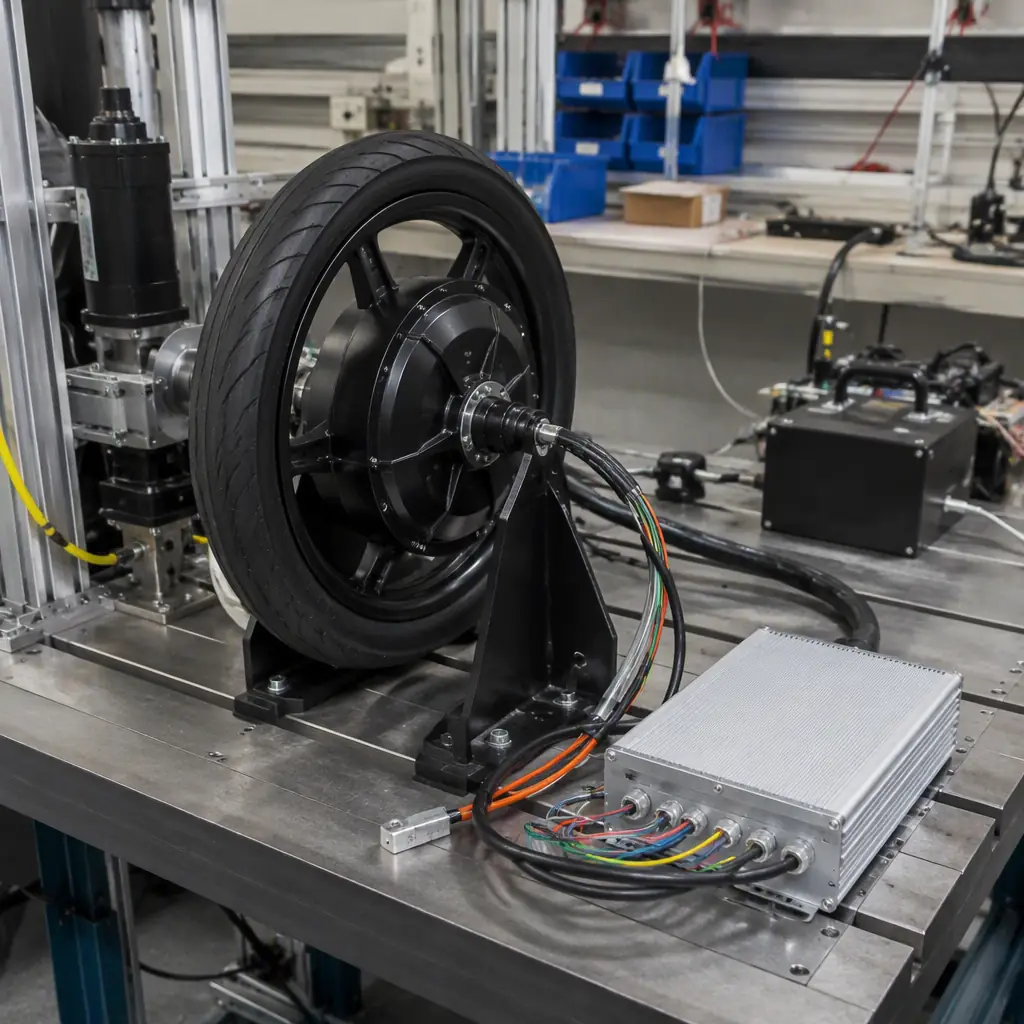

Our motor and controller systems are designed as matched pairs for optimal efficiency. Each combination is dyno-tested at five load points before shipping, with a test report included in every production batch.
The 60-second read for buyers: as an OEM line item or aftermarket range, this motor and controller family covers 250 to 1500 W geared hub, direct-drive and mid-drive units at 36-72V, with FOC sine-wave controllers, regenerative braking, CAN/Bluetooth telemetry, IP65 motor winding and IP54-65 potted controllers - matched to hub, mid-drive and throttle specs for each vehicle. Orders start at 50 units per configuration with a 15-30 day standard lead time (30-45 days for the first custom-branded run), and pre-production samples ship before mass production. The compliance package and per-order documents (cell, BMS and test reports where applicable) are compiled with the export file, and an export engineer settles fitment questions on one call — no obligation.
| Parameter | Specification |
|---|---|
| Motor Types | Geared hub / direct-drive hub / mid-drive (Bafang-compatible platform) |
| Power Range | 250W / 350W / 500W / 750W / 1000W / 1500W / 2000W / 3000W |
| Voltage | 36V / 48V / 52V / 60V / 72V |
| Winding | Standard torque / high-speed winding per application |
| Efficiency | 80–92% peak efficiency zone |
| Magnet Grade | N38SH / N40H neodymium (high-temp rated) |
| Controller Type | Sine wave FOC (Field-Oriented Control), square wave option |
| Controller Features | Regenerative braking, cruise control, walk mode, PAS sensor input |
| Communication | UART display / CAN bus / Bluetooth module ready |
| Waterproof Rating | Motor IP65, controller IP54–IP65 (potted) |
| Compatibility | Twist throttle / thumb throttle / torque sensor / cadence sensor |
OEM Options
Motors and controllers are the heart of the electric drivetrain. We support deep customization from winding specification to controller firmware — every variable is tunable for your specific vehicle platform and rider profile.
- Motor winding spec (KV rating for speed vs torque)
- Cable exit position (axle side)
- Connector type (custom L1019 / Julet / waterproof)
- Magnet grade (N35–N40SH)
- Controller programming (acceleration curve, regen strength, speed limit)
- Display pairing (matching LCD / TFT)
- Branding on motor side cover (laser engrave / silkscreen)
- Cassette vs freewheel freehub
- Disc brake mount (ISO 6-bolt / centerlock)
- Axle standard (M12 / M14 with flat)
Certifications
Motor and controller assemblies are tested to relevant electromagnetic compatibility and safety standards. For complete vehicle certification, the motor-controller pair is submitted as part of the EN 15194 system-level test package.
MOQ 500 units (motors) / 200 units (controllers) Lead time: 20–30 days
Compatible Product Lines
Our motor and controller systems are engineered for seamless integration with every vehicle category we produce. Each power class is validated on the target frame and wheel size before release.
E-Bikes
250W–750W geared hub motors for city, folding and cargo e-bikes. 500W–1000W mid-drive for eMTB applications with torque sensor compatibility.
View E-Bikes
E-Scooters
250W–500W hub motors for kick-scooter decks and seated scooters. Compact form factor with integrated drum brake option for shared-fleet durability.
View E-Scooters
E-Scooters & Motorcycles
1000W–3000W direct-drive hub motors for moped-class vehicles. 72V systems with potted controllers rated for continuous high-load operation in delivery fleet use.
View E-Scooters
E-Tricycles
500W–1500W motors with differential axle controllers for cargo trikes. High-torque winding prioritizes loaded-start performance over top speed for logistics applications.
View E-TricyclesInside Our Motor & Controller Facility

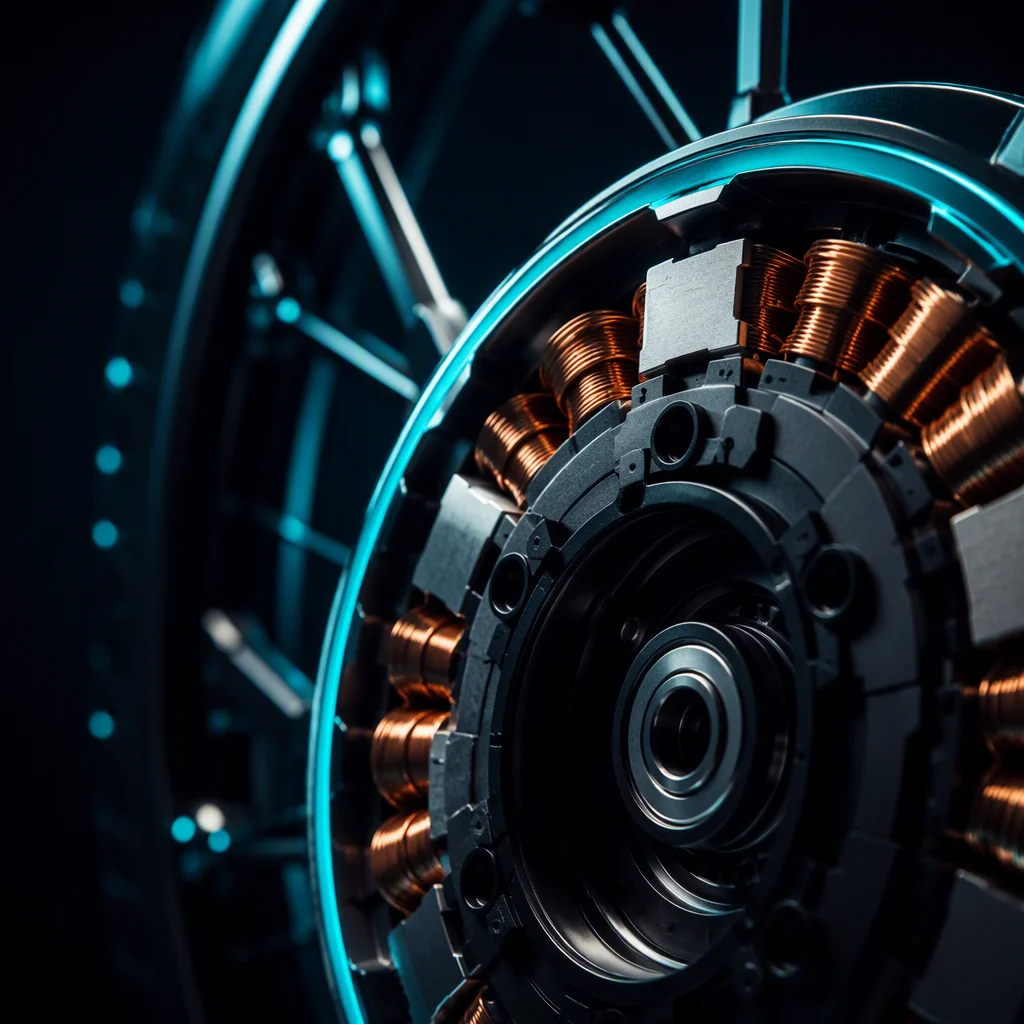

From stator winding and magnet bonding to controller SMT assembly and dyno testing, every drive system component is manufactured and validated under one roof for seamless compatibility.
Motor & Controller Sourcing Questions
Technical answers about motor types, MOQ differences, and controller feature selection from our drivetrain engineering team.
What is the difference between geared hub, direct-drive hub, and mid-drive motors?
What is the MOQ for motors versus controllers?
What controller features are worth specifying for my market segment?
Motor Type Comparison
Three motor architectures covering the full range of e-bike and light electric vehicle applications. Each type is available in multiple power ratings and winding configurations.
| Specification | Geared Hub 250W | Direct-Drive 1000W | Mid-Drive 750W |
|---|---|---|---|
| Type | Geared hub motor | Direct-drive hub motor | Mid-drive (Bafang-compatible) |
| Power | 250W nominal | 1000W nominal | 750W nominal |
| Voltage | 36V / 48V | 48V / 60V / 72V | 48V / 52V |
| Peak Efficiency | 85–88% | 88–92% | 80–85% |
| Weight | ~3.2 kg | ~6.5 kg | ~4.8 kg |
| Noise Level | Quiet (geared whine at speed) | Near silent | Chain noise + motor whine |
| Regenerative Braking | No (freewheel clutch) | Yes | Yes (via drivetrain) |
| Best Application | City commuter, folding bike | Cargo, fat tire, high-speed | eMTB, performance, steep hills |
| Price FOB | $45–90 | $90–160 | $180–350 |
| MOQ | 500 units | 500 units | 500 units |
How to Order Motors & Controllers
Packaging, payment, sample and warranty terms for motor and controller procurement. Standard industrial goods — no dangerous goods classification.
Packaging & Shipping
- Motor: individual foam-in-place box, 24 per master carton
- Controller: anti-static bag + foam box, 48 per master carton
- 20GP container: ~8,000 motors or ~15,000 controllers
- Standard sea freight, no DG classification required
Payment Terms
- T/T 30/70 (30% deposit, 70% before shipment)
- L/C at sight available for orders over $40,000
- Alibaba Trade Assurance accepted for first order
- Multi-currency: USD, EUR, GBP accepted
Sample Policy
- Motor sample: 1.2x unit price + $40–80 DHL air freight
- Controller sample: 1.2x unit price + $25–40 DHL air freight
- Sample cost credited on first bulk order
- Custom winding sample: 2–3 weeks lead time
Warranty & Support
- Motors: 18 months against manufacturing defect (excludes water damage beyond IP rating)
- Controllers: 18 months standard, potted controllers 24 months
- Failure rate under 0.5% across all models
- 1% spare units included with every shipment + CAD drawings, winding charts, and torque curve data provided
Ready to Source Motors & Controllers?
Specify your power target, voltage, wheel size and desired controller features. Our drivetrain engineers will propose the optimal motor-controller pairing with dyno curves and pricing within 24 hours.
