Battery Packs
36V–72V lithium · NMC & LFP · Samsung/LG cells · BMS smart protection
Battery Pack Parameters
Every pack is assembled under our quality program — automated cell sorting, spot-welding and BMS programming on a dedicated line. Choose from 15 standard configurations or submit your own dimensional and electrical requirements.
The 60-second read for buyers: this Battery Packs platform is engineered around with a 36V / 48V / 52V / 60V / 72V pack; delivering 7.5Ah – 40Ah (configurable by cell count & arrangement). OEM orders start at 50 units per model with a 15–30 day standard lead time (30–45 days for the first custom-branded run), and pre-production samples ship before mass production. The compliance package covers EN 50604, UL 2271, UN 38.3, and each order carries cell, BMS and test-report documents in the export file. Spec and duty-cycle questions are settled with an export engineer on one call — no obligation.
| Parameter | Specification |
|---|---|
| Voltage Options | 36V / 48V / 52V / 60V / 72V |
| Capacity Range | 7.5Ah – 40Ah (configurable by cell count & arrangement) |
| Cell Types | 18650 / 21700 cylindrical, Samsung 50E / LG M50T / Panasonic NCR |
| Chemistry | NMC (LiNiMnCoO2) for high density / LFP (LiFePO4) for safety |
| BMS | Smart BMS with overcharge, over-discharge, short-circuit, thermal protection |
| Communication | UART / CAN / Bluetooth (app-ready) optional |
| Cycle Life | 800+ cycles to 80% capacity (NMC), 2000+ (LFP) |
| Form Factor | Downtube (Dorado/Reention), seat-post, under-deck, under-seat, custom |
| Charging | 2A standard / 4A–5A fast charge capable |
| Ingress Protection | IP65 (connectors), IP54 (pack) |
| Operating Temp | -10°C to 55°C (NMC), -20°C to 60°C (LFP) |
| Certifications | UN 38.3, IEC 62133, UL 2271, MSDS, CE, RoHS |
OEM Options
We build battery packs to your exact requirements — every parameter from cell grade to connector type is configurable with full documentation and testing reports included per shipment.
- Cell brand & grade (Samsung/LG/Panasonic → generic)
- BMS feature set (basic / Bluetooth / CAN bus)
- Case tooling (custom plastic or aluminum extrusion)
- Connector type (XT60 / XT90 / Anderson / aviation)
- Voltage & capacity custom
- Label & branding
- Discharge rate tuning (standard 15A vs high-drain 30A+)
- Heating pad for cold climates
- Quick-swap rail mechanism
Certifications
Lithium battery shipments require stringent documentation. Every pack ships with the full compliance dossier needed for customs clearance in your destination market, including UN 38.3 test summaries and MSDS sheets.
MOQ 500 units Lead time: 20–30 days (custom case tooling +15 days)
Compatible Product Lines
Our battery packs are designed and tested for integration with all EMS-EBIKE vehicle platforms. Each pack configuration is validated on the target vehicle type before mass production begins.
E-Bikes
Downtube and seat-post packs for city commuter, fat tire, folding, cargo and eMTB platforms. Integrated lock-and-latch mechanisms with frame-matched color options.
View E-Bikes
E-Scooters
Under-deck and stem-integrated battery packs for kick-scooters and seated scooters. Slim-profile aluminum cases with bottom-drain design for water ingress protection.
View E-Scooters
E-Scooters & Motorcycles
High-capacity 60V–72V packs for moped and motorcycle-class vehicles. Dual-battery parallel configurations supporting 3000W+ continuous discharge with active thermal management.
View E-Scooters

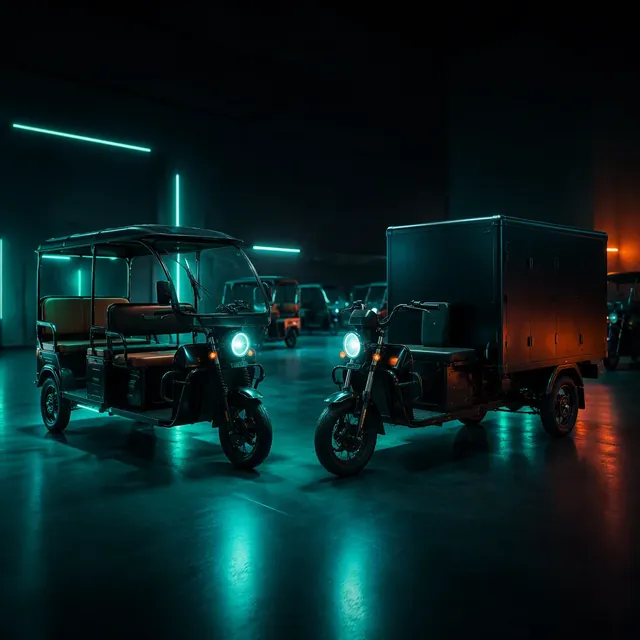

E-Tricycles
Under-deck and rear-box battery configurations for cargo trikes and passenger rickshaws. LFP chemistry preferred for fleet applications requiring 2000+ cycle durability.

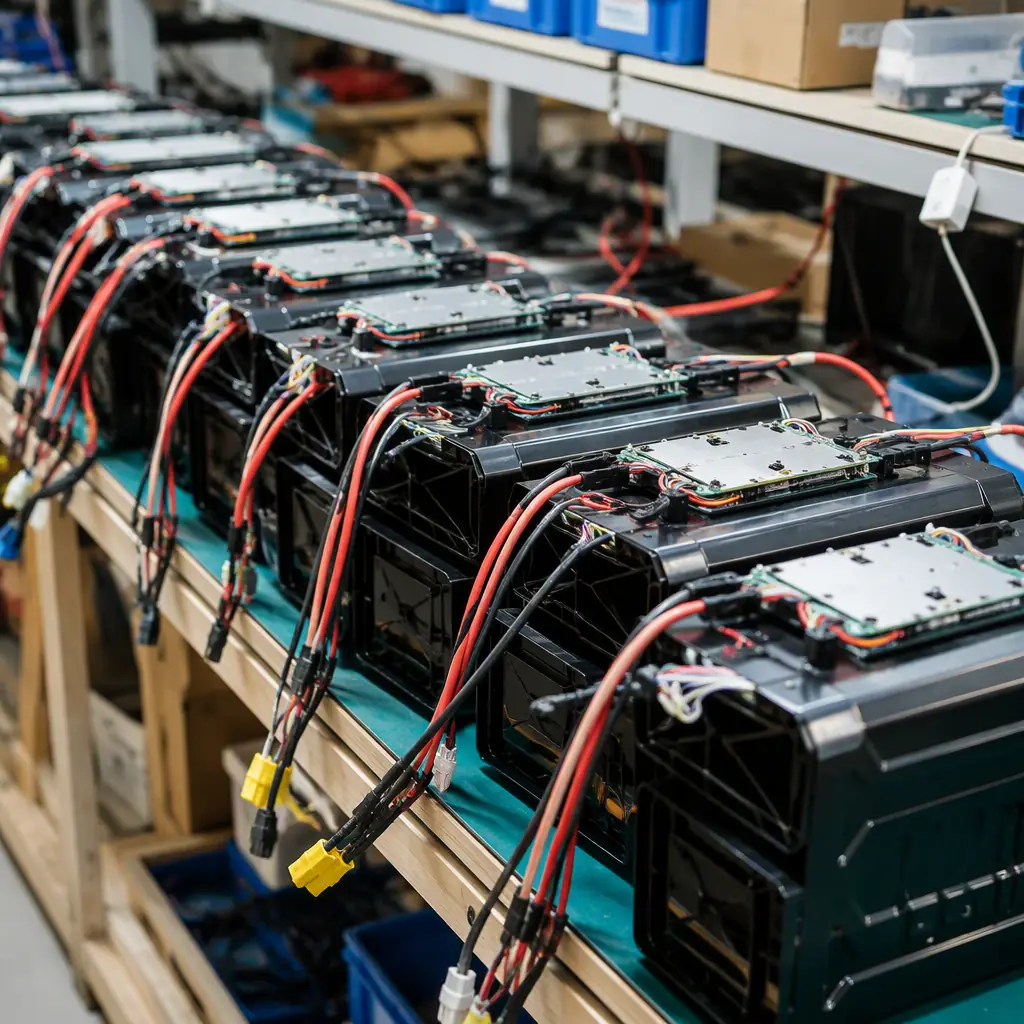

View E-TricyclesInside Our Battery Assembly Line

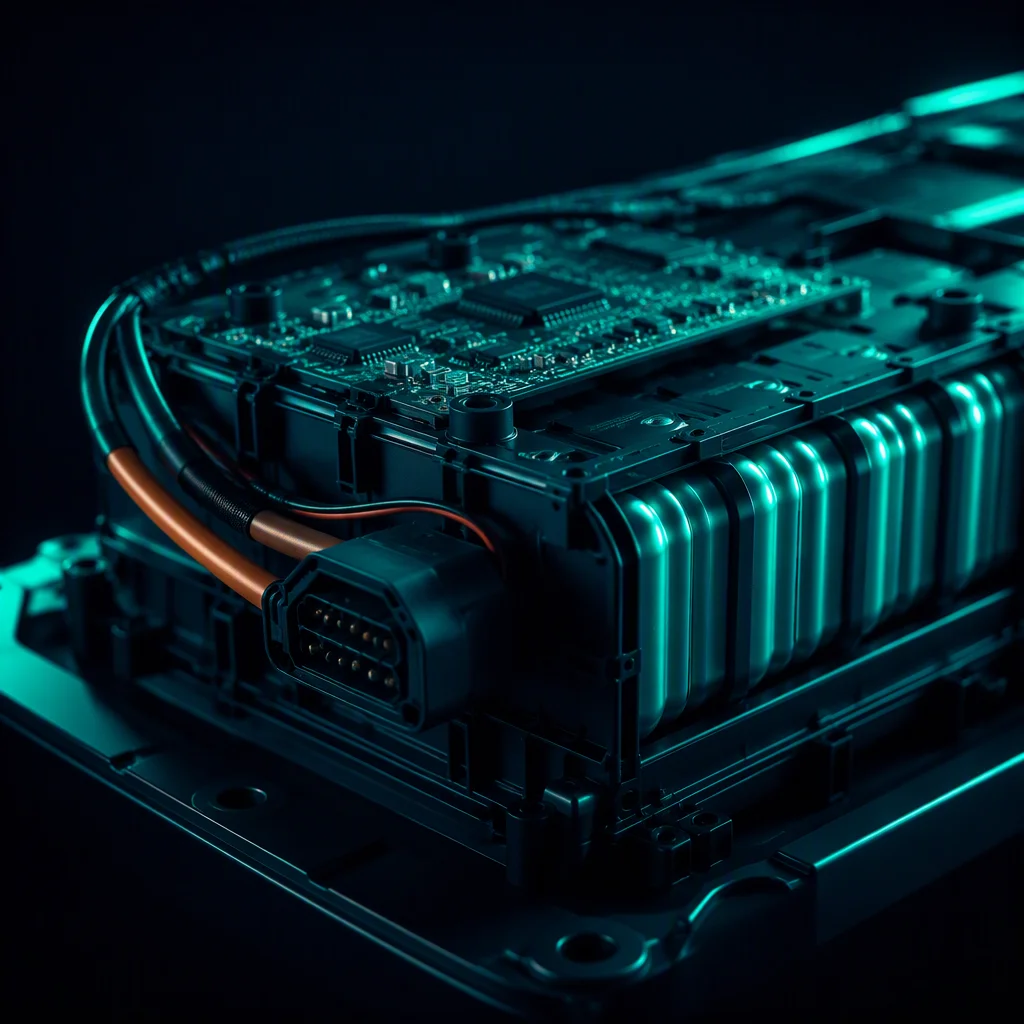

Every pack is assembled on a dedicated lithium battery production line with automated cell sorting, precision spot-welding, and full BMS functional testing before packaging.
Battery Pack Buying Questions
Straight answers from our battery engineering team. No marketing fluff — just the specs, pricing ranges and compliance details you need to make an informed sourcing decision.
What is the MOQ for OEM battery packs and what cell brands do you use?
What certifications do I need for importing battery packs into the EU and US?
What is the price difference between NMC and LFP chemistry, and which should I choose?
Battery Pack Configurations
Three representative configurations across the most-requested voltage and chemistry combinations. All configurations can be customized to your exact requirements.
| Specification | 36V 10Ah NMC | 48V 15Ah NMC | 72V 20Ah LFP |
|---|---|---|---|
| Chemistry | NMC (LiNiMnCoO2) | NMC (LiNiMnCoO2) | LFP (LiFePO4) |
| Capacity | 10Ah | 15Ah | 20Ah |
| Energy | 360Wh | 720Wh | 1,440Wh |
| Cell Type | 18650 3,500mAh | 21700 5,000mAh | LFP 26650 3,800mAh |
| Cycle Life | 800+ cycles (80% capacity) | 800+ cycles (80% capacity) | 2,000+ cycles (80% capacity) |
| Weight | ~2.5 kg | ~3.8 kg | ~8.5 kg |
| BMS Features | Overcharge, over-discharge, short-circuit, thermal | Smart BMS + UART communication | Smart BMS + CAN + Bluetooth |
| Price Range FOB | $95–120 | $250–325 | $350–430 |
| MOQ | 500 units | 500 units | 500 units |
How to Order Battery Packs
Everything you need to know about packaging, payment, samples and warranty before placing your first purchase order.
Packaging & Shipping
- Individual UN-approved packaging box with anti-static bubble wrap and silica gel, 12 packs per master carton
- 20GP container: ~8,000–12,000 packs depending on form factor
- Dangerous Goods Class 9 sea freight declaration included at no charge
- DG surcharge approximately $150–250 per shipment, not per unit
Payment Terms
- T/T 30/70 (30% deposit, 70% before shipment)
- L/C at sight available for orders over $50,000
- Alibaba Trade Assurance accepted for first order
- Multi-currency: USD, EUR, GBP, AUD
Sample Policy
- 3–5 sample packs available at 1.2x unit price + DHL/FedEx DG surcharge ~$120–180
- Sample lead time: 7–10 business days
- Custom case tooling sample requires $500 mold fee, credited on first 1,000-unit order
- Pre-production sample with your branding included for orders over 500 units
Warranty & Support
- 12 months or 800 charge cycles (NMC) / 2,000 cycles (LFP), whichever comes first
- BMS failure within warranty: replacement pack shipped within 3 business days
- Capacity below 70% within warranty period qualifies for pro-rata credit
- Technical documentation: full cell datasheets, BMS protocol specs, and mechanical drawings provided with order
How to Order Battery Packs
Lithium batteries ship as dangerous goods (UN 38.3). We handle the full DG documentation chain — MSDS, UN38.3 test report, and DG declaration — at no extra cost on production orders.
Packaging & Shipping
- UN 38.3 documented packs shipped at ≤30% state of charge per IATA PI 965
- Foam-lined box with lithium warning labels, 4–8 packs per master carton
- 20GP container: ~1,200 packs (48V 20Ah size); sea freight is the cost-efficient route
- DG air surcharge approx. $150–250 per shipment, not per unit
Payment Terms
- T/T 30/70 (30% deposit, 70% before shipment)
- L/C at sight available for orders over $40,000
- Alibaba Trade Assurance accepted for first order
- Multi-currency: USD, EUR, GBP accepted
Sample Policy
- 3–5 sample packs at 1.2x unit price
- DG air freight ~$120–180 via DHL/FedEx, 5–7 business days
- Sample cost credited on first bulk order of 100+ packs
- Custom cell / form factor samples: 3–4 weeks lead time
Warranty & Support
- 12 months or 800 charge cycles, whichever comes first
- Replacement pack shipped within 3 business days on approved claims
- BMS data logging available for fleet battery health tracking
- End-of-life take-back program for EU importer compliance
Source OEM Battery Packs Today
Send your voltage, capacity, form factor and target cell brand — our battery engineering team returns a full spec sheet, unit pricing and UN 38.3 compliance timeline within 24 hours.
